AES Automation Solutions

Automated Car Show Lifts:

​

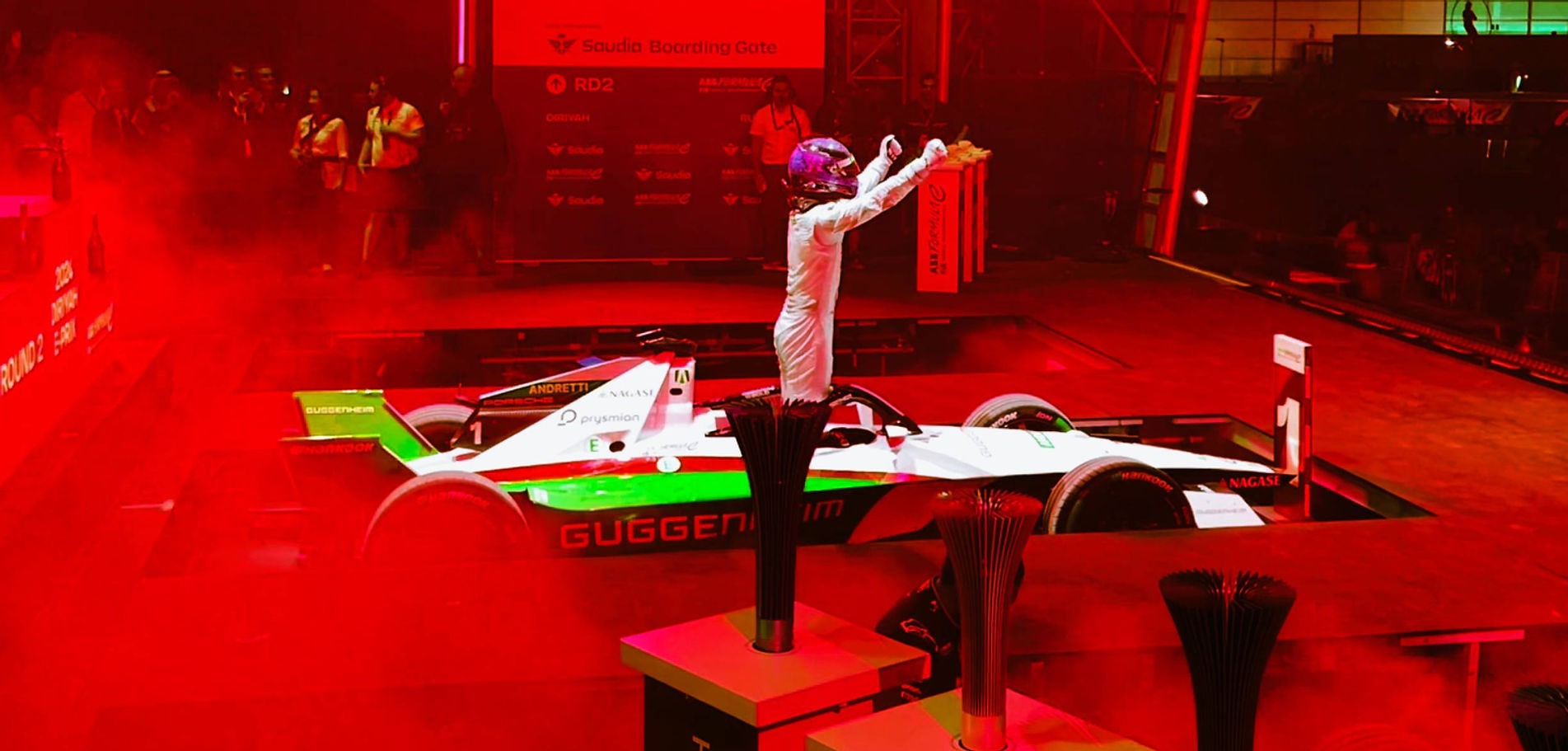

Our state-of-the-art lifts are ideal for vehicle reveals, engineered to seamlessly elevate vehicles from below a stage, captivating audiences and creating a dynamic “reveal” presentation. With advanced control systems and precision engineering, our lifts ensure smooth and reliable performance every time.

Music Stage Lifts:

​

Elevate your performances to new heights with our custom-designed music stage lifts. Whether you’re looking to reveal a band or artist in a dramatic entrance or create multi-level staging effects, our lifts are versatile, reliable, and built to impress.

Custom Solutions:

​

AES Automation Solutions, we understand that every event is unique. That’s why we offer custom lift solutions tailored to your specific needs and requirements. Our team of experienced engineers and designers will work closely with you to bring your vision to life and create a memorable experience for your audience.

Key Features:

• Precision engineering for smooth and reliable performance
• Advanced control systems for seamless operation
• customisable designs to suit any event or venue
• Safety features to ensure the well-being of performers and vehicles
• Professional installation and support services

Why Choose AES Automation Solutions:

• Industry-leading expertise in automated mechanical lifts
• Commitment to quality, innovation, and customer satisfaction
• Proven track record of successful projects and satisfied clients
• Dedicated support team to assist you every step of the way

Elevate your next event with AES Automation Solutions and experience the difference that our automated mechanical lifts can make. Contact us today to learn more about our products and services.

General information:

Due to this TP03 Series modular system, all kinds of custom shapes are possible.

Every “leg” is pré assembled with translates in a very fast assembly and disassembly on location.

​

The height of this TP03 Series is adjustable in steps according to the LitecQX30 trussing.

The height of this elevator is the same as the lifting height.

​

NO HEIGHT LOSS!

​

Soft movements in every position are guaranteed.

​

Also, the capacity of this elevator remains at every position at maximum strength.

​

Can be mounted in every scaffold structure.

Safety:

​

The WI-Hoists used to operate the elevators are all BGV-C1 certified.

To lift people, the platform between the legs has to be conform to all safety standards!

Elevator TP03-1000 technical specifications:

​

• Standard heights: 1300mm (Own weight: 213kg)
• Custom heights are possible, with a maximum height of 15m (limited by the chain length)
• If necessary, we can go higher by extending the chain length.
• The speed is similar to the speed of the double reeved used chain hoist to operate the elevator.
• Mostly used hoist is the CM Varistar with speeds between 5mm/sec and 250mm/sec.
• Maximum capacity also depends on the used chain hoist. With the double reeved CM Varistar,
• the elevator has a capacity of 1000kg/leg

​

CLICK THE PDF BELOW TO VIEW OUR AES TP03 BROCHURE

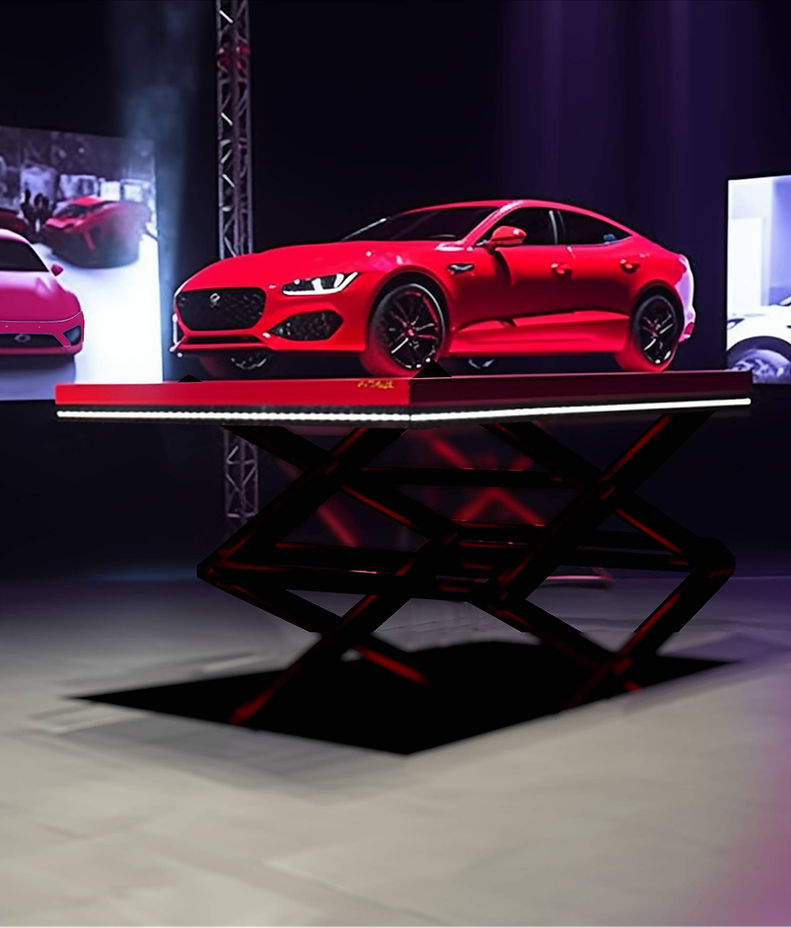

The AES stage platform elevator is a versatile and robust solution designed specifically for the event industry. With a weight capacity of up to 4000kgs, this scissor lift is ideal for revealing artists and performers on stage, as well as handling heavy lifts such as cars with ease. Its hydraulic system ensures smooth and precise operation, making it a reliable choice for various event applications.

The Hydraulic Platform Scissor Lift is a must-have tool for event organisers and production crews looking to enhance the visual impact of their events. Whether you need to elevate performers onto the stage in dramatic fashion or showcase a prized car at a product launch, this scissor lift delivers the performance and reliability you need.

With a variety of designs and models, load capacity of between 200kg – 4,000kg and a lift range from 1170 mm to 5,000mm, AES platform lifts can offer a very large selection of scissor lift tables. The double- & triple scissor lift tables are available in different colors, with a range of different accessories or control units – all tailored to the needs and requirements of the customer. Most models are even available in heavy duty versions if intensive operations are planned for them.

Greater functionality can be achieved with the help of various accessories. A few examples of accessories for this product group are various chassis frames, guard rails, gates, loading flaps, limit switches, as well as different types of control unit.

PRODUCT FEATURES

• Scissor lift table load capacity max 4000 kg.
• Scissor lift platform length 5000 mm
• Scissor lift platform width 2450 mm
• Lift height range max 5000 mm.
• Comprehensive accessory program with possibilities for tailor-made customer solutions.
• Complies with European safety standard EN 1570-1 – CE certified.
• 24 V DC control unit and operating device with deadman’s switch.
• IP54 approved electrical system.
• Safety spacing between all moving parts of the lift table.
• Overload protection.
• Adjustable trap prevention safety trip bars on all four sides of the platform.
• Scissor lift tables are equipped with hose burst valves and mechanical locks for servicing and maintenance.
• Maintenance-free bearing surface.
• PLC control for easy adaptation for individual requirements

Key Features:

​

• High Weight Capacity: With a maximum capacity of 4000kgs, this scissor lift can safely and efficiently handle heavy loads, making it suitable for a wide range of applications.
• Hydraulic System: The hydraulic system ensures smooth and precise vertical movement, allowing for controlled and stable positioning of the platform at various heights.
• Safety Features: Built-in safety features such as overload protection and emergency stop buttons ensure the safety of both operators and performers during use.
• Portable and Easy to Use: Despite its heavy-duty capabilities, this scissor lift is designed to be portable and easy to set up, making it convenient for use at different event locations.
• Versatile Applications: From revealing artists and performers to lifting cars and other heavy objects, this scissor lift is versatile enough to meet the diverse needs of the event industry.

Whether you are organising a concert, a trade show, a product launch, or any other event that requires the dramatic unveiling of performers or vehicles , the AES stage platform elevator is the perfect tool to elevate your event to the next level. Trust in its performance, reliability, and safety features to make your event a memorable and visually stunning experience.

​

CLICK THE PDF BELOW TO VIEW OUR AES STAGE PLATFORM ELEVATOR BROCHURE
